Revit Hatch Patterns - Wood
Revit Hatch Patterns - Wood
This package contains 17 wood hatch patterns that you can use to create filled regions or surface patterns in Revit.
Think of all the time you’ll save from having to create these hatch patterns yourself!
List of hatch patterns includes:
Wood Plank 2in
Wood Plank 3in
Wood Plank 4in
Wood Plank 5in
Wood Plank 6in
Wood Plank 7in
Wood Plank 8in
Wood Plank 9in
Wood Plank 10in
Wood Plank 11in
Wood Plank 12in

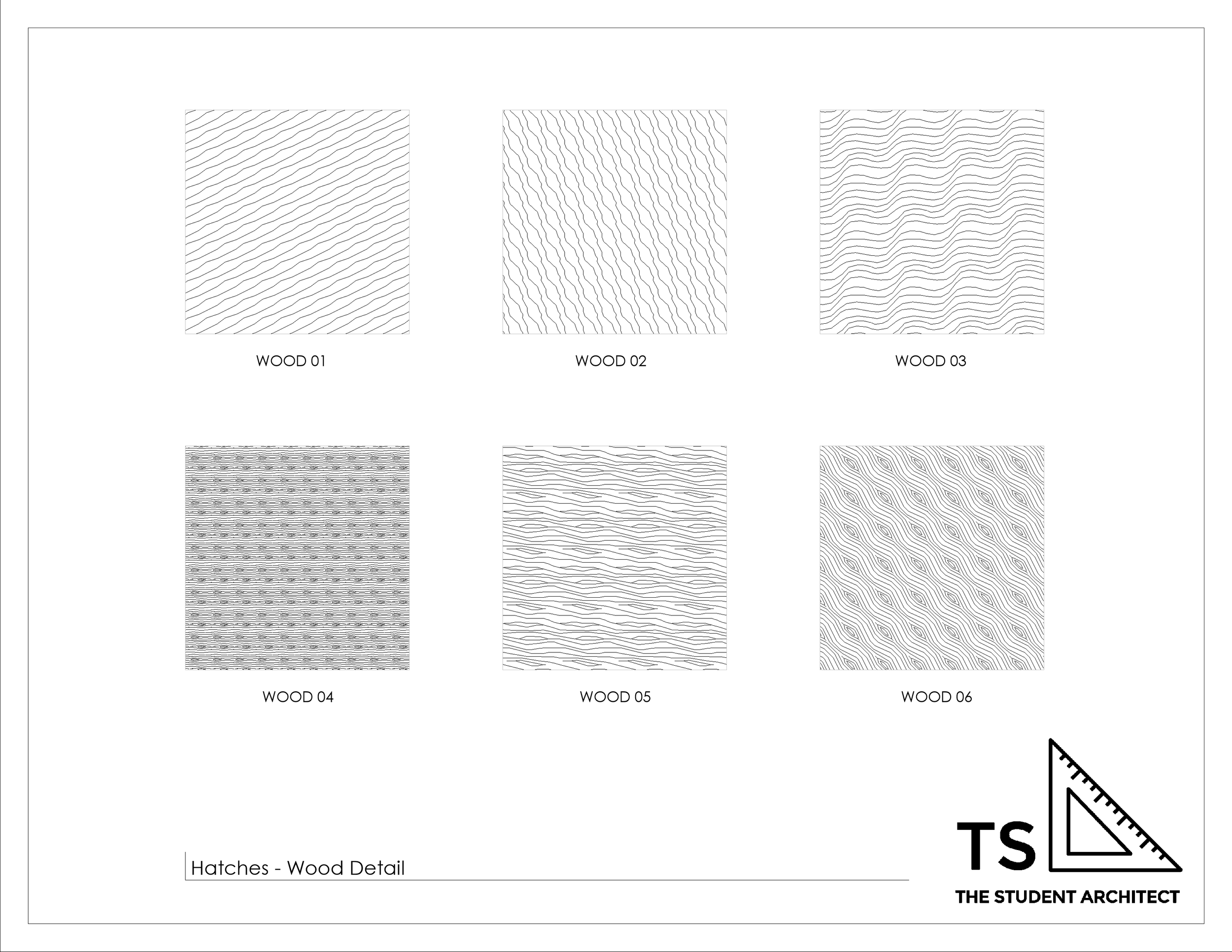

Wood Detail 01
Wood Detail 02
Wood Detail 03
Wood Detail 04
Wood Detail 05
Wood Detail 06
Included in the package:
17 PAT files
PDF showing each hatch pattern and name
For Revit users: these PAT files are model patterns (not draft patterns). This means lines within the patterns can be selected, dimensioned, shifted, rotated, etc., and will scale with your views.
You can use these hatches with any version of Revit.
Watch the video below to learn what to do after you make a purchase.
DisclaimerS:
All sales are final. There are no refunds on digital products.
Commercial Use License:
By purchasing this product, you are granted a non-exclusive, non-transferable commercial license.
Permitted Uses:
Use in unlimited personal and professional projects.
Modify or adapt the files to suit specific project requirements.
Prohibited Uses:
Reselling, sharing, or redistributing the original or modified files.
Including the files in any asset library, template collection, or product for resale or free distribution.
Claiming the files as your own original work.
