Revit Hatch Pattern Bundle
Revit Hatch Pattern Bundle
Build your Revit library the smart way—grab 160 premium hatch patterns in one go! From stone and brick to wood and siding, this bundle has everything you need to create beautiful, professional drawings without the endless searching.
Normally a $70 value when purchased individually, now bundled for a special discounted price—big savings, instant download, zero hassle.
This bundle includes 160 Revit custom hatch patterns grouped by type.
Brick
23 PAT files
PDF showing each hatch pattern and name
1/2 Running Bond
1/2 Running Bond - Grout
1/3 Running Bond
1/3 Running Bond - Grout
Running Header
Soldier Course
Soldier Course - Grout
Stack Bond - Horizontal
Stack Bond - Horizontal - Grout
Stack Bond - Vertical
Stack Bond - Vertical - Grout
Common Bond
Flemish Bond
Common Flemish Bond
Flemish Bond - Double Stretcher
Flemish Cross
Flemish Cross - Hatch
Flemish Diagonal
Flemish Diagonal - Hatch
English Dutch Cross Bond
Garden Wall Bond
Garden Wall Cross
Garden Wall Cross - Hatch
Brick Pavers
21 PAT files
PDF showing each hatch pattern and name
Basketweave Boxed
Basketweave Boxed Offset
Basketweave Double
Basketweave Mid-Century Modern
Basketweave Mid-Century Modern 45
Basketweave Running Bond Combo
Basketweave Single
Basketweave Single Offset Half
Basketweave Single Offset Third
Basketweave Spanish Bond Combo
Basketweave Stacked
Basketweave Stacked Offset
Basketweave Variation
Herringbone
Herringbone 45
Holland Combination
Spanish Bond
Running + Stack Bond
Running + Stacked Bond Offset
Grid Flat
Grid Side
Siding
75 PAT files
PDF showing each hatch pattern and name
Arrow (9 variations)
Board + Batten (8 variations)

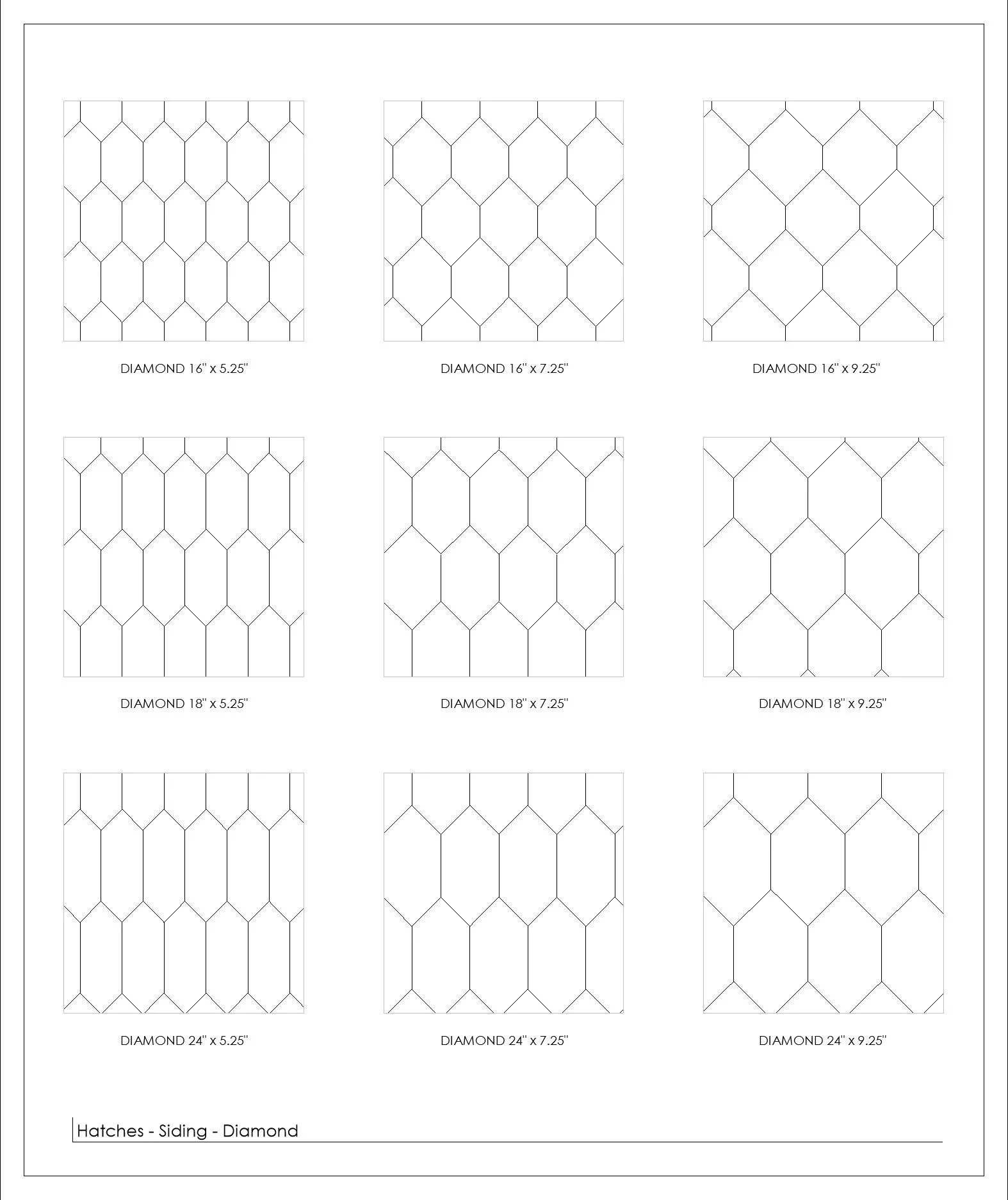

Diamond (9 variations)

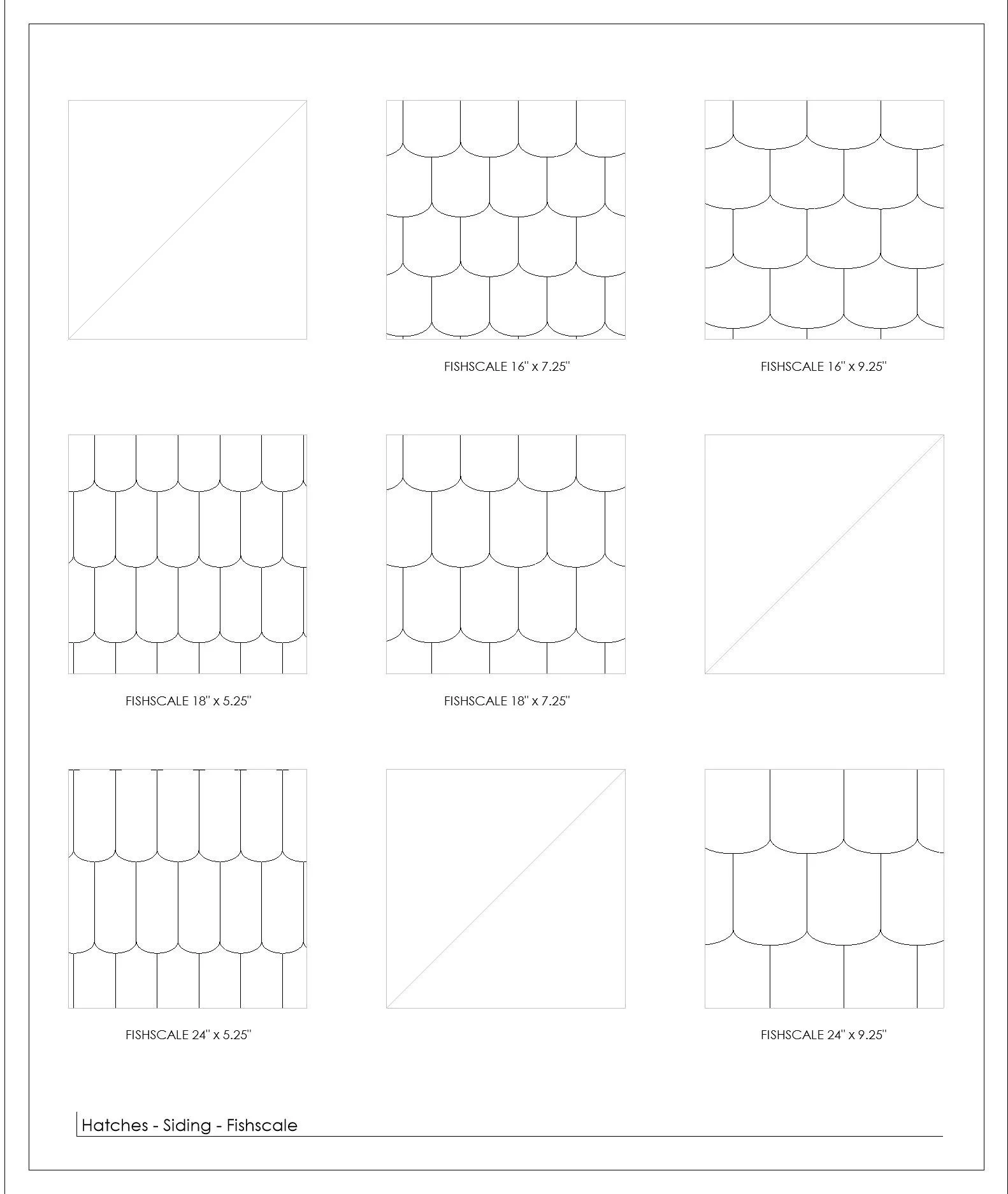

Fishscale (6 variations)

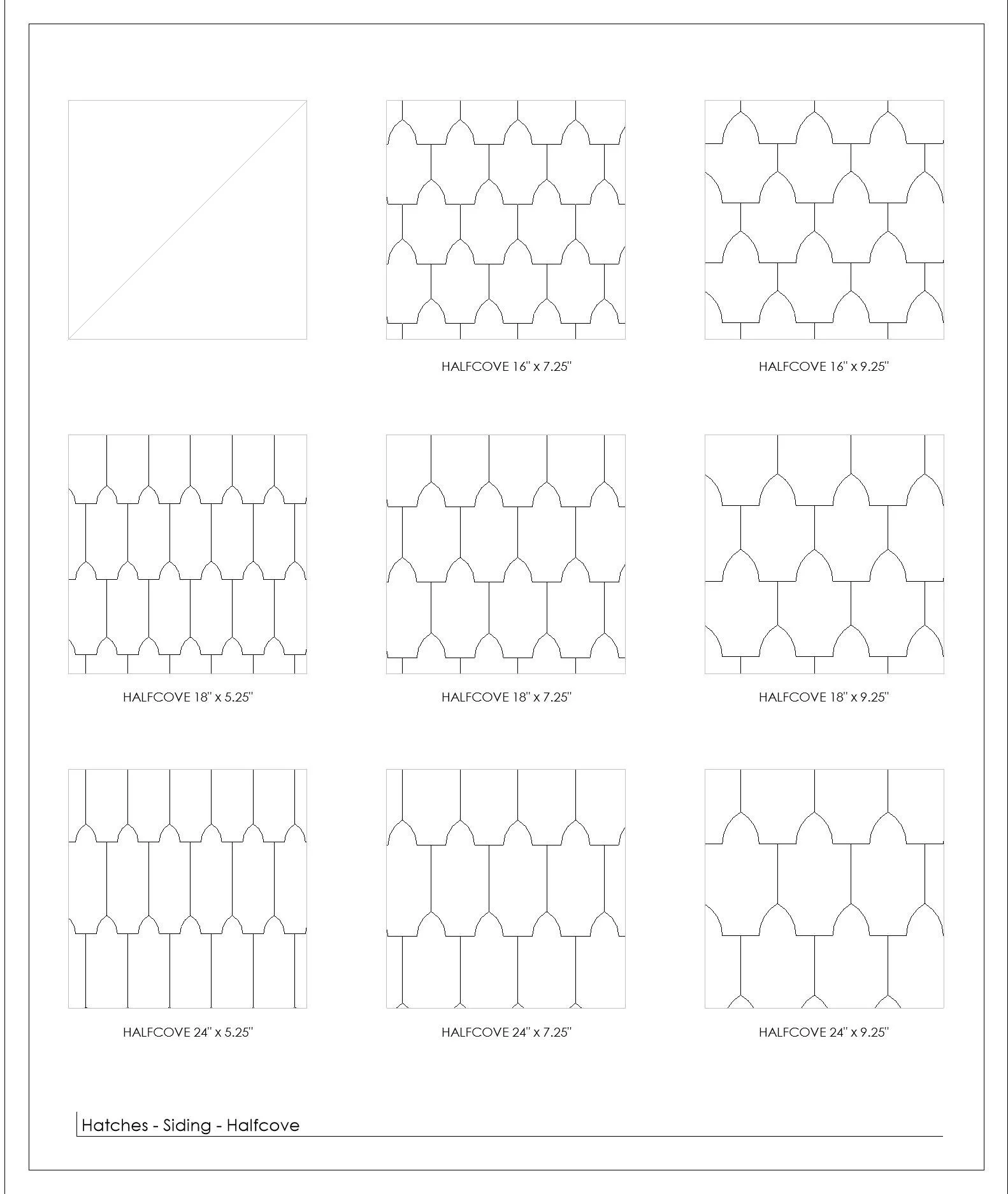

Halfcove (8 variations)

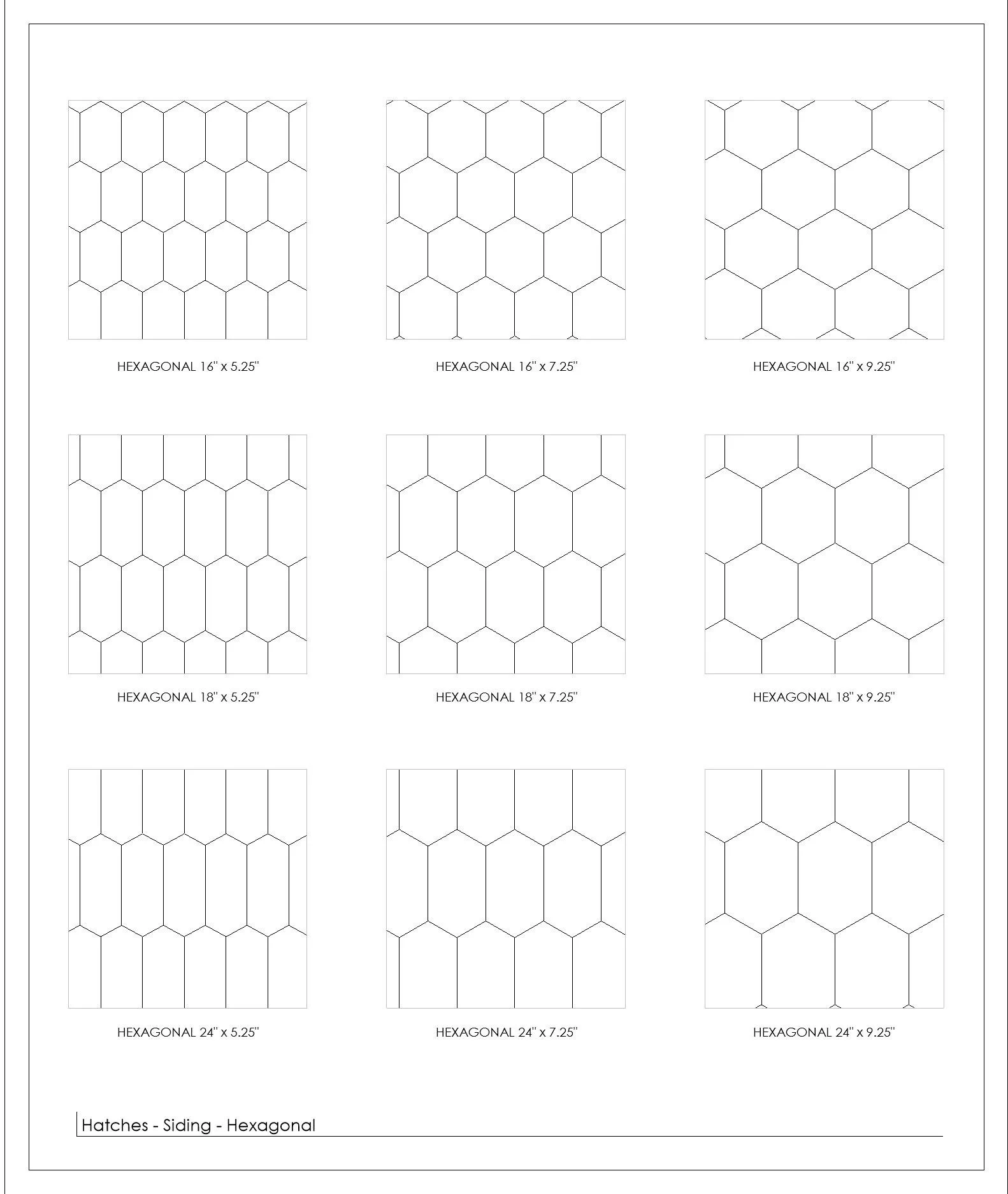

Hexagonal (9 variations)

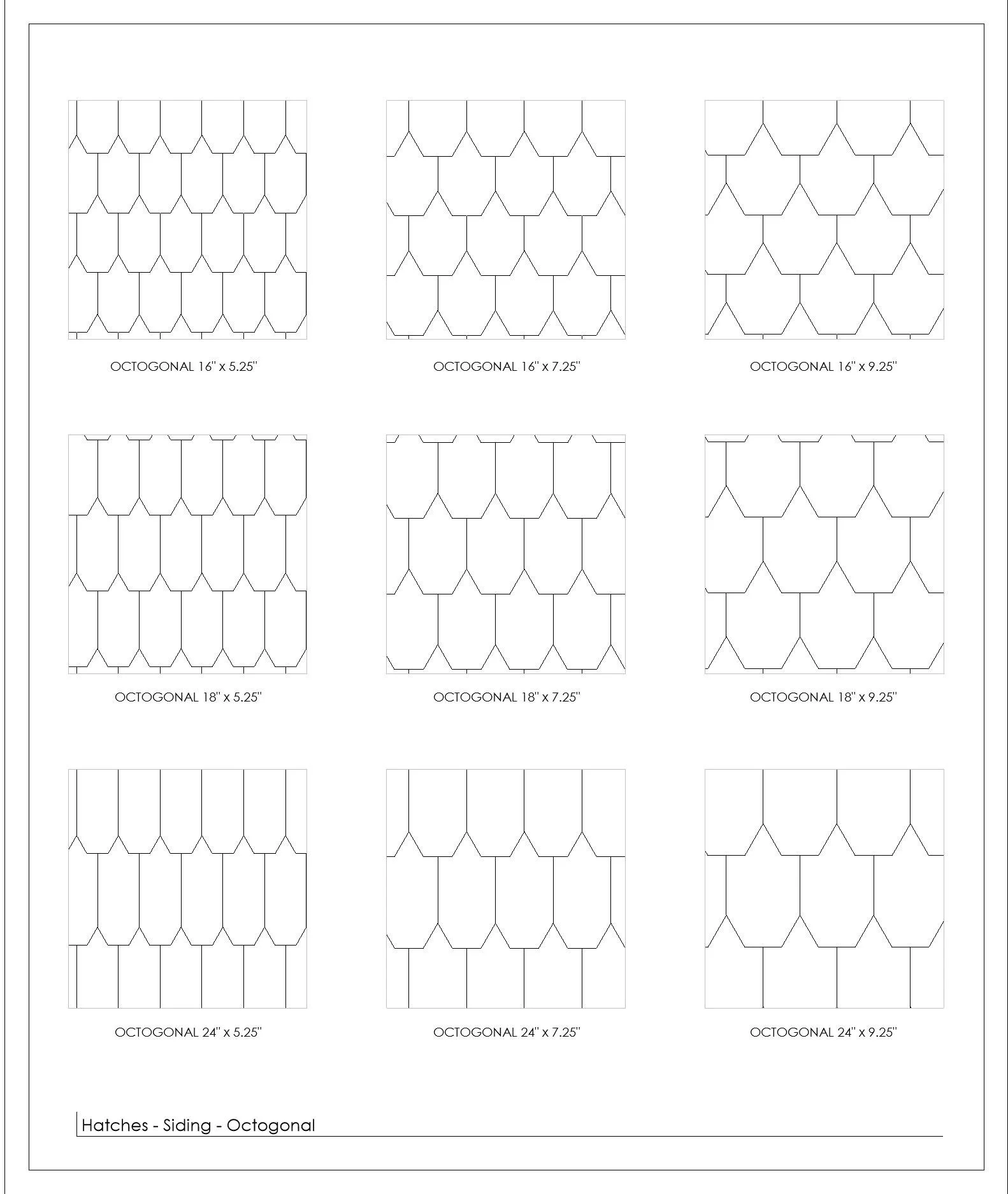

Octogonal (9 variations)
Scallop (8 variations)
Square (9 variations)

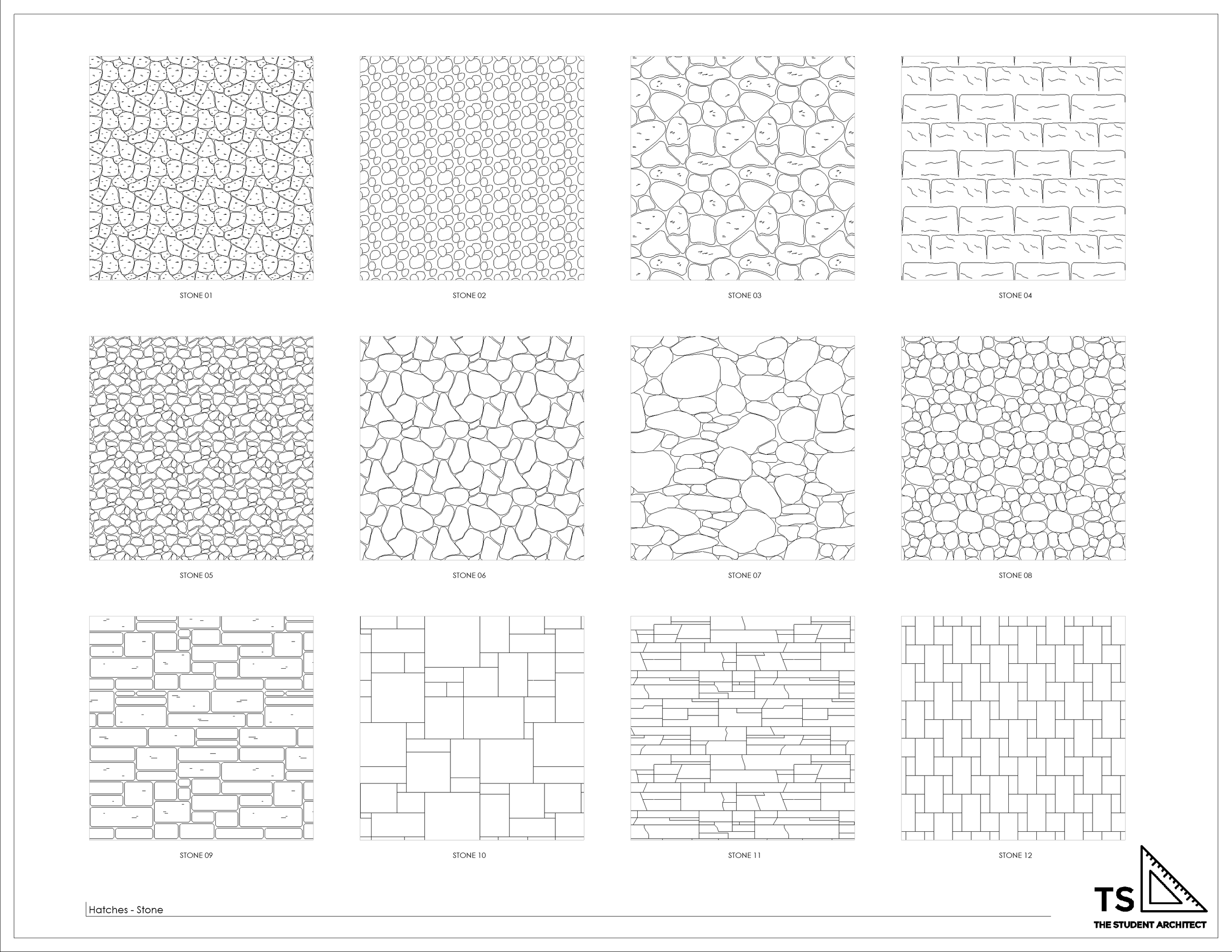

Stone
12 PAT files
PDF showing each hatch pattern and name
Stone 01
Stone 02
Stone 03
Stone 04
Stone 05
Stone 06
Stone 07
Stone 08
Stone 09
Stone 10
Stone 11
Stone 12
Stone Pavers
12 PAT files
PDF showing each hatch pattern and name
3 Stone Boxed
3 Stone I Pattern
3 Stone Mixed
3 Stone Offset
5 Stone
Dog Bone
Hexagon
Muster K
Octagon Dot
Octagon Dot 45
Trihex
ZigZag
Wood
17 PAT files
PDF showing each hatch pattern and name
Wood Plank 2in
Wood Plank 3in
Wood Plank 4in
Wood Plank 5in
Wood Plank 6in
Wood Plank 7in
Wood Plank 8in
Wood Plank 9in
Wood Plank 10in
Wood Plank 11in
Wood Plank 12in
Wood Detail 01
Wood Detail 02
Wood Detail 03
Wood Detail 04
Wood Detail 05
Wood Detail 06
For Revit users: these PAT files are model patterns (not draft patterns). This means lines within the patterns can be selected, dimensioned, shifted, rotated, etc., and will scale with your views.
You can use these hatches with any version of Revit.
Watch the video below to learn what to do after you make a purchase.
DisclaimerS:
All sales are final. There are no refunds on digital products.
Commercial Use License:
By purchasing this product, you are granted a non-exclusive, non-transferable commercial license.
Permitted Uses:
Use in unlimited personal and professional projects.
Modify or adapt the files to suit specific project requirements.
Prohibited Uses:
Reselling, sharing, or redistributing the original or modified files.
Including the files in any asset library, template collection, or product for resale or free distribution.
Claiming the files as your own original work.
