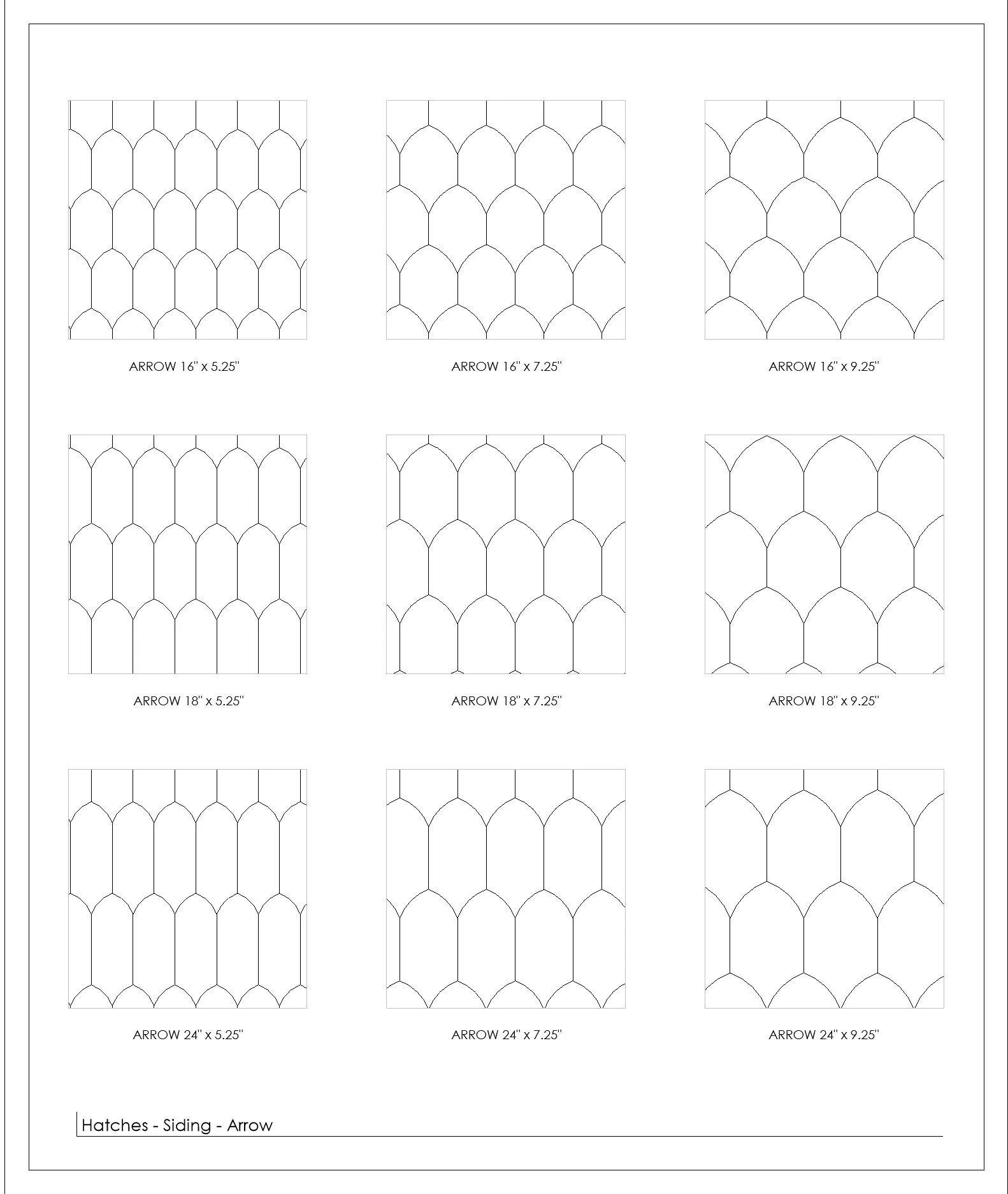

Hatch Patterns - Sheet - A1-22 - Siding - Arrow.jpg

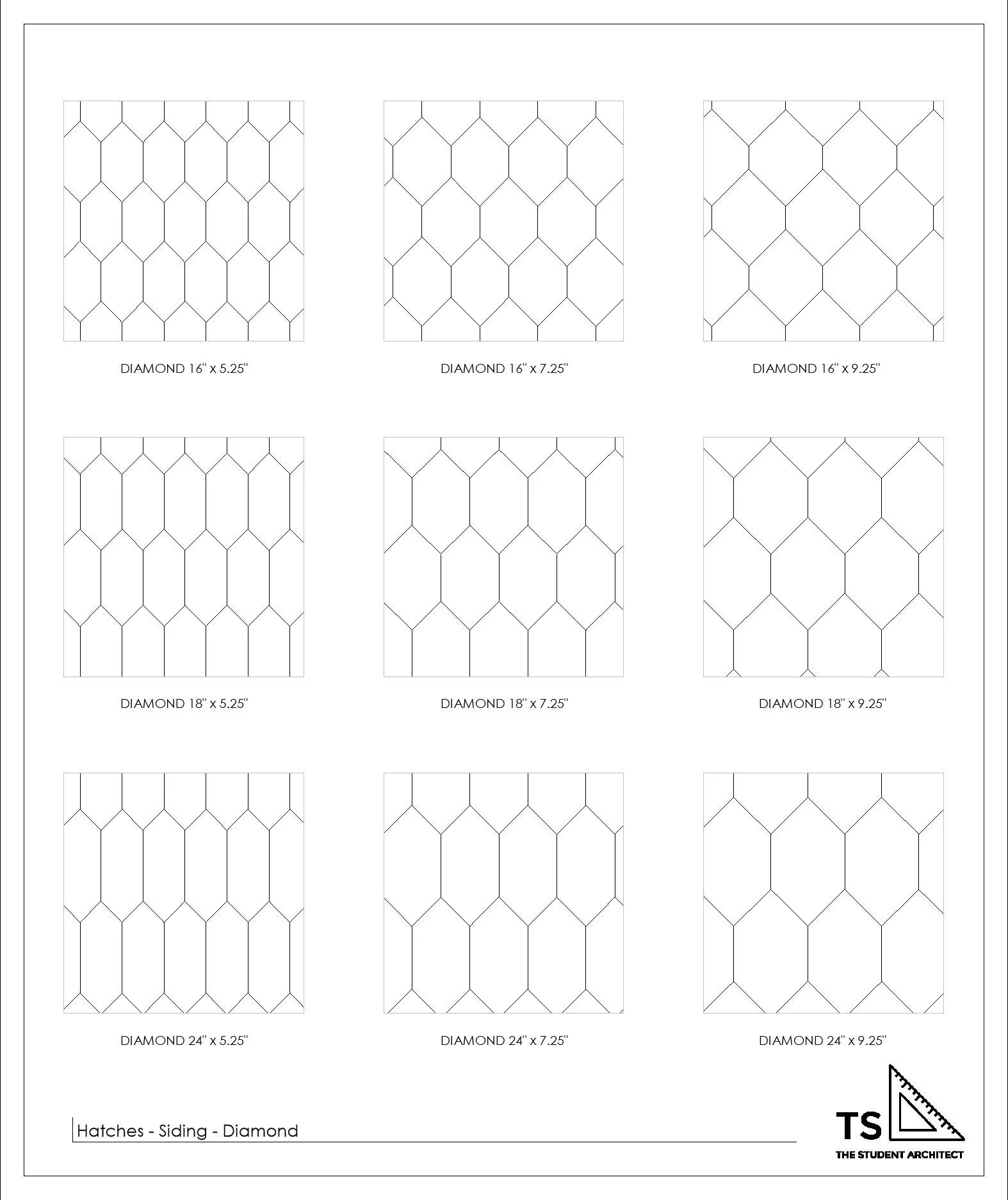

Hatch Patterns - Sheet - A1-23 - Siding - Diamond.jpg
Hatch Patterns - Sheet - A1-24 - Siding - Fishscale.jpg
Hatch Patterns - Sheet - A1-25 - Siding - Halfcove.jpg

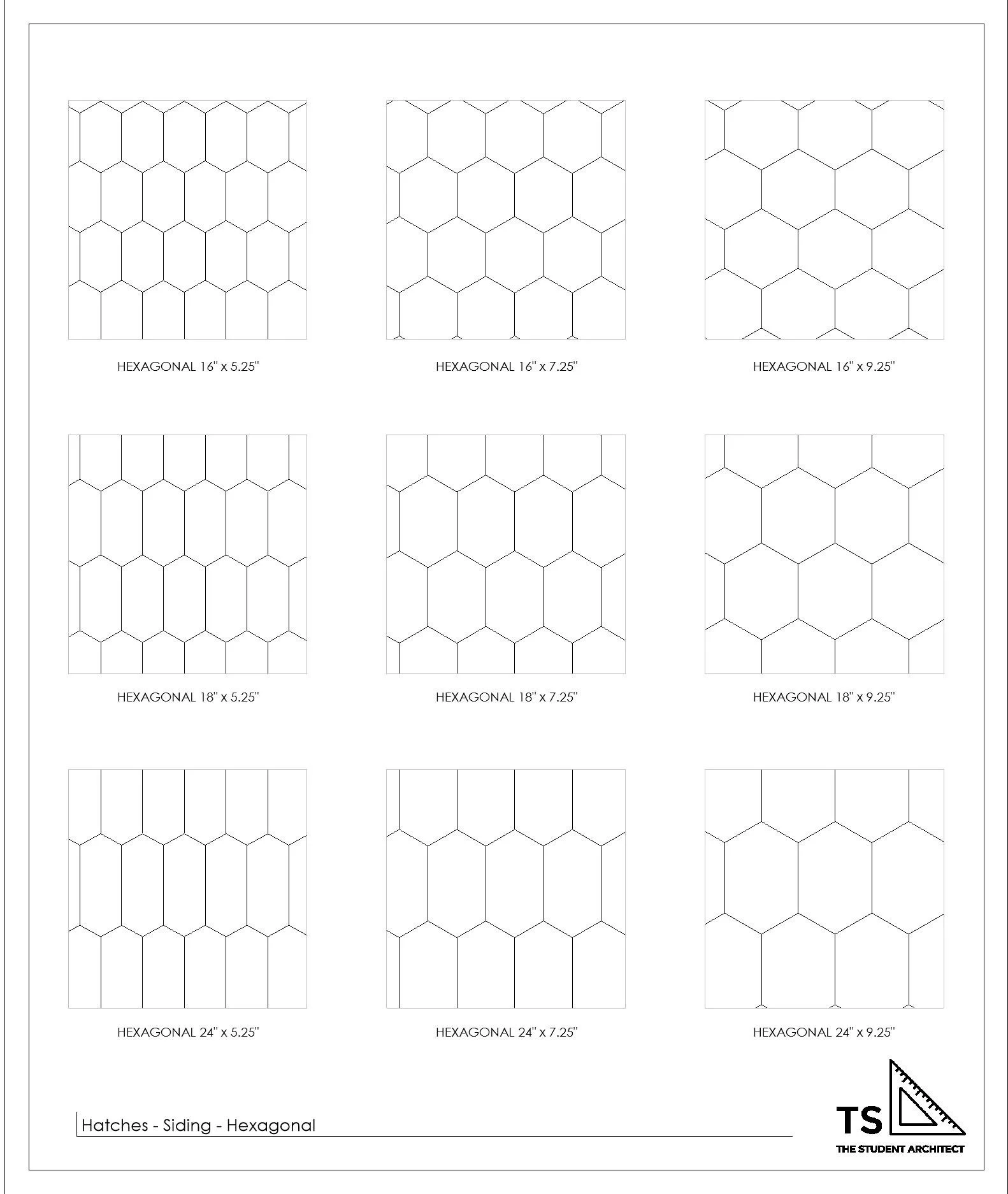

Hatch Patterns - Sheet - A1-26 - Siding - Hexagonal.jpg

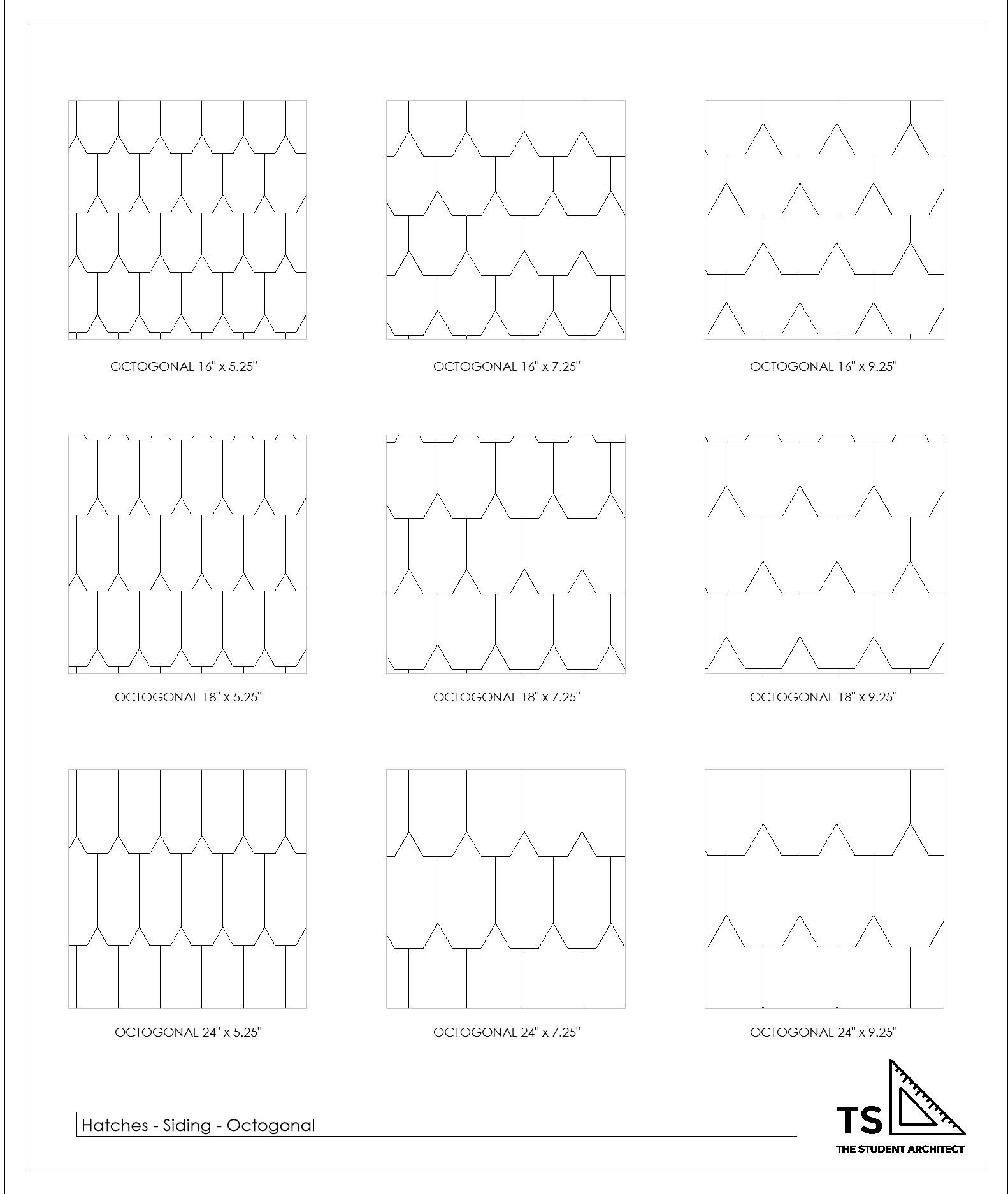

Hatch Patterns - Sheet - A1-27 - Siding - Octogonal.jpg
Hatch Patterns - Sheet - A1-28 - Siding - Scallop.jpg

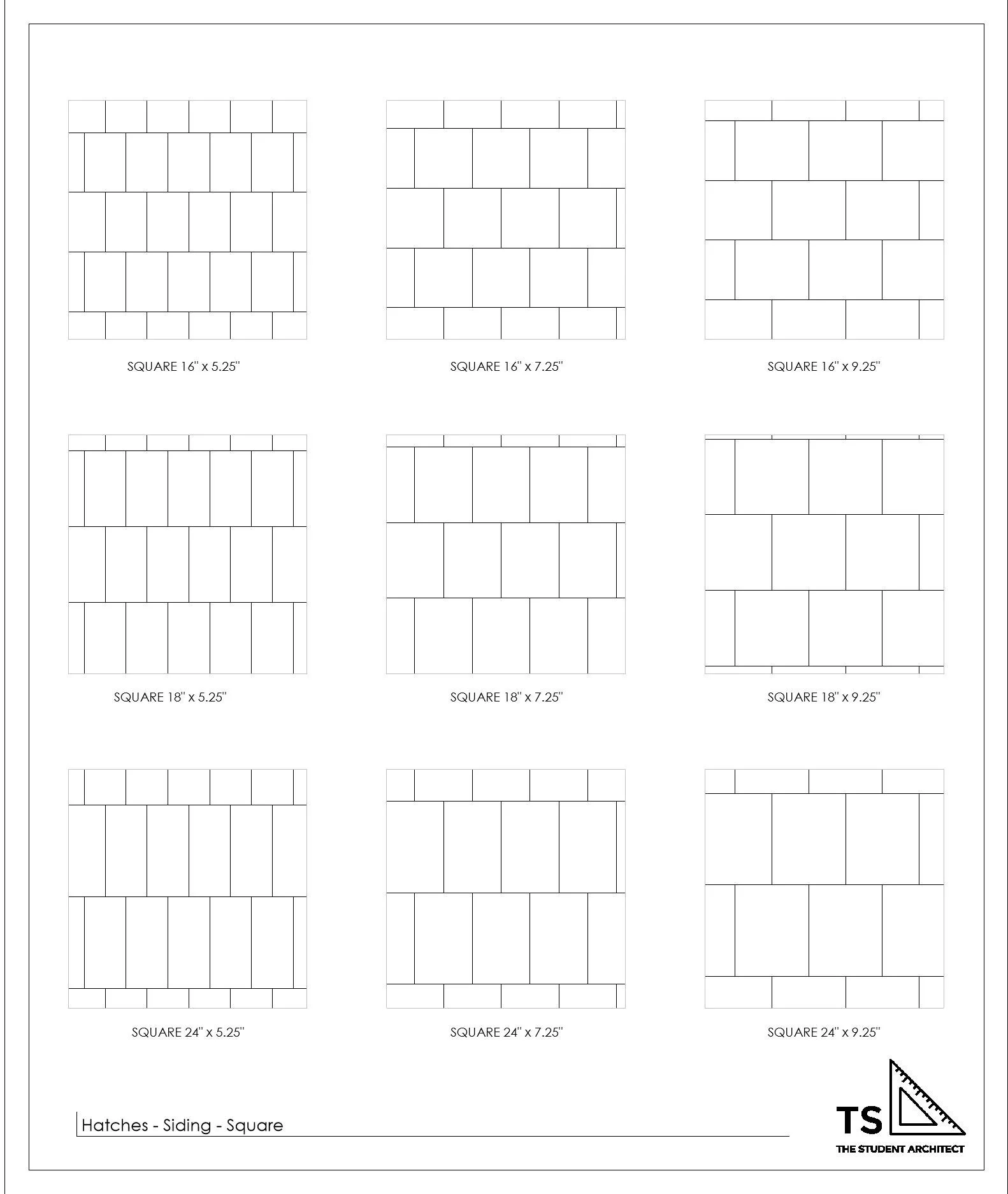

Hatch Patterns - Sheet - A1-29 - Siding - Square.jpg

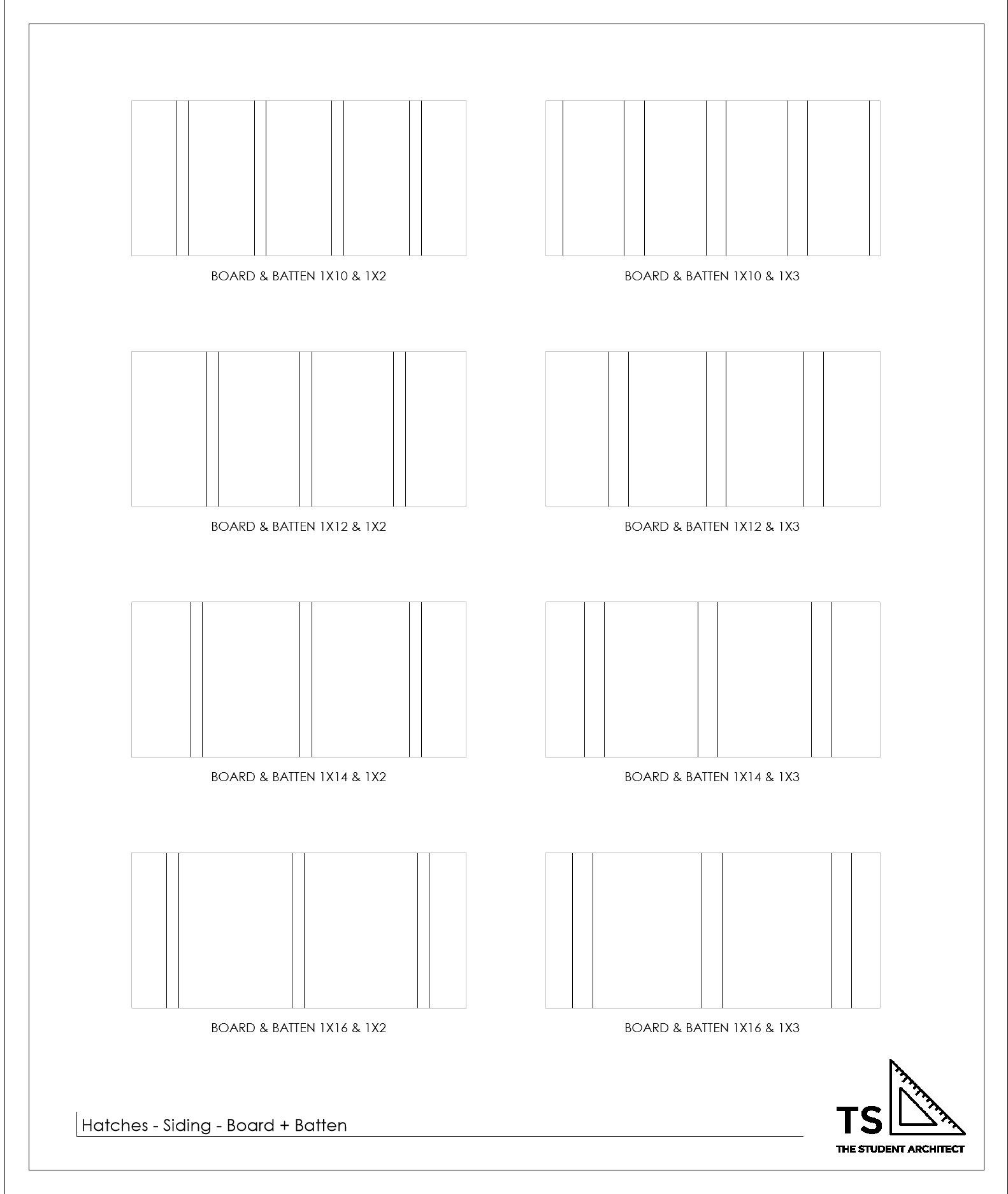

Hatch Patterns - Sheet - A1-30 - Siding - Board + Batten.jpg
TSA - Hatch Patterns - Siding.jpg
Hatch Patterns - Sheet - A1-22 - Siding - Arrow.jpg
Hatch Patterns - Sheet - A1-23 - Siding - Diamond.jpg
Hatch Patterns - Sheet - A1-24 - Siding - Fishscale.jpg
Hatch Patterns - Sheet - A1-25 - Siding - Halfcove.jpg
Hatch Patterns - Sheet - A1-26 - Siding - Hexagonal.jpg
Hatch Patterns - Sheet - A1-27 - Siding - Octogonal.jpg
Hatch Patterns - Sheet - A1-28 - Siding - Scallop.jpg
Hatch Patterns - Sheet - A1-29 - Siding - Square.jpg
Hatch Patterns - Sheet - A1-30 - Siding - Board + Batten.jpg
sale

Hatch Patterns - Siding

Sale Price:$14.99 Original Price:$19.99

This package contains 75 siding hatch patterns that you can use to create filled regions or surface patterns in Revit and AutoCAD.

Think of all the time you’ll save from having to create these hatch patterns yourself!

Add To Toolbox

List of hatch pattern designs includes:

  • Arrow (9 variations)

  • Board + Batten (8 variations)

  • Diamond (9 variations)

  • Fishscale (6 variations)

  • Halfcove (8 variations)

  • Hexagonal (9 variations)

  • Octogonal (9 variations)

  • Scallop (8 variations)

  • Square (9 variations)

Each pattern comes with between 6 to 9 size variations - see images for details!



Included in the package:

  • 75 PAT files

  • PDF showing each hatch pattern and name

For Revit users: these PAT files are model patterns (not draft patterns). This means lines within the patterns can be selected, dimensioned, shifted, rotated, etc., and will scale with your views.

You can use these hatches with any version of Revit or AutoCAD.


DisclaimerS:

All sales are final. There are no refunds on digital products.
